Lecture 2: A Brief Pre-Calculus Review

We continue with our precalculus review. We'll see how we can derive a function from real-world data to model the physical world. This serves as our entry point to discussing other families of functions, which are essential for what we will do in calculus.

---

From Data to a Mathematical Model

It's a common observation that crickets chirp more frequently as the temperature rises. Let's imagine we're field biologists who have collected the following data:

Temperature (°C), $T$	Chirps per Minute, $C$
20	80
22	90
25	105
28	120
30	130

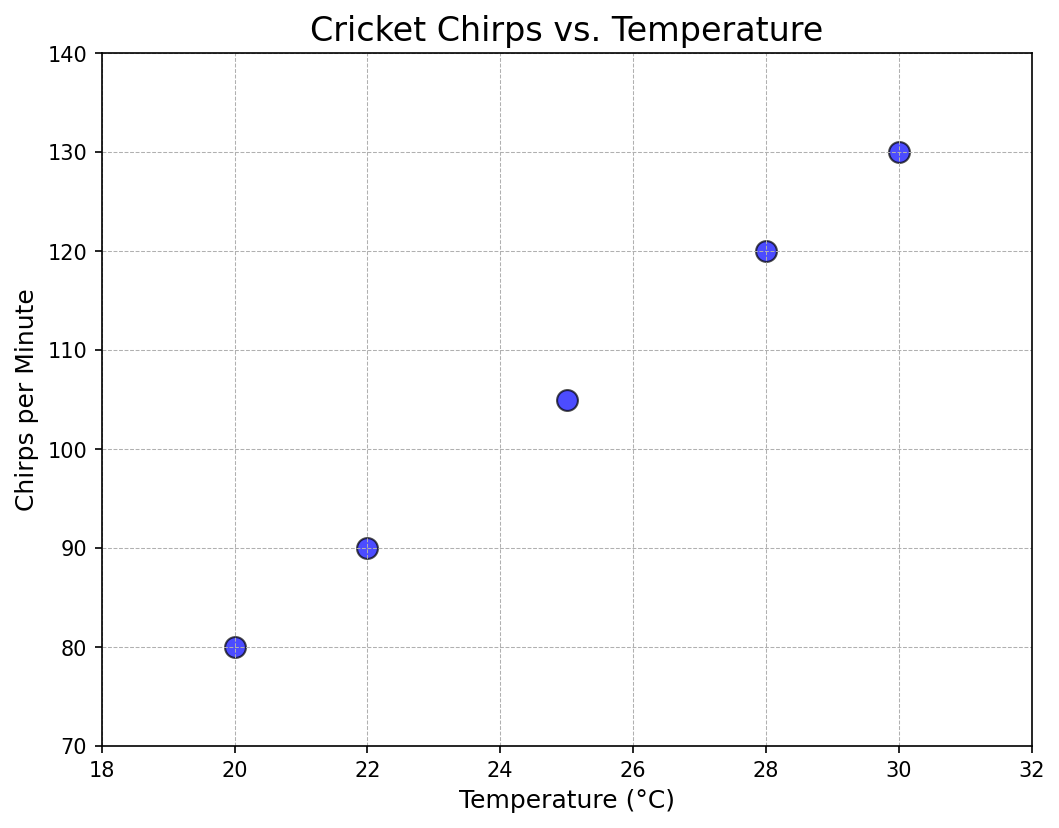

Our first step is to visualize the data. We'll plot temperature on the x-axis (our independent variable) and chirps per minute on the y-axis (our dependent variable).

Scientists and engineers live by this principle: visualize your data first. A plot reveals patterns that a table of numbers can hide. Here, the points form a nearly perfect line, which suggests a linear relationship.

Creating a Formula

To create a formula, we can use the point-slope form of a linear equation, $y - y_1 = m(x - x_1)$. In our context, this is $C - C_1 = m(T - T_1)$. We need to find the slope ($m$) and then use one of our data points.

Let's find the slope using two points from our data, $(T_1, C_1) = (20, 80)$ and $(T_2, C_2) = (30, 130)$:

$$m = \frac{\text{change in chirps}}{\text{change in temperature}} = \frac{\Delta C}{\Delta T} = \frac{130 - 80}{30 - 20} = \frac{50}{10} = 5$$

The slope is 5 chirps/minute per degree Celsius. Now we use the point-slope form with $m=5$ and the point $(T_1, C_1) = (20, 80)$:

$$ C - C_1 = m(T - T_1) $$

$$ C - 80 = 5(T - 20) $$

Now, let's solve for $C$ to get the slope-intercept form:

$$ C = 5T - 100 + 80 $$

$$ C = 5T - 20 $$

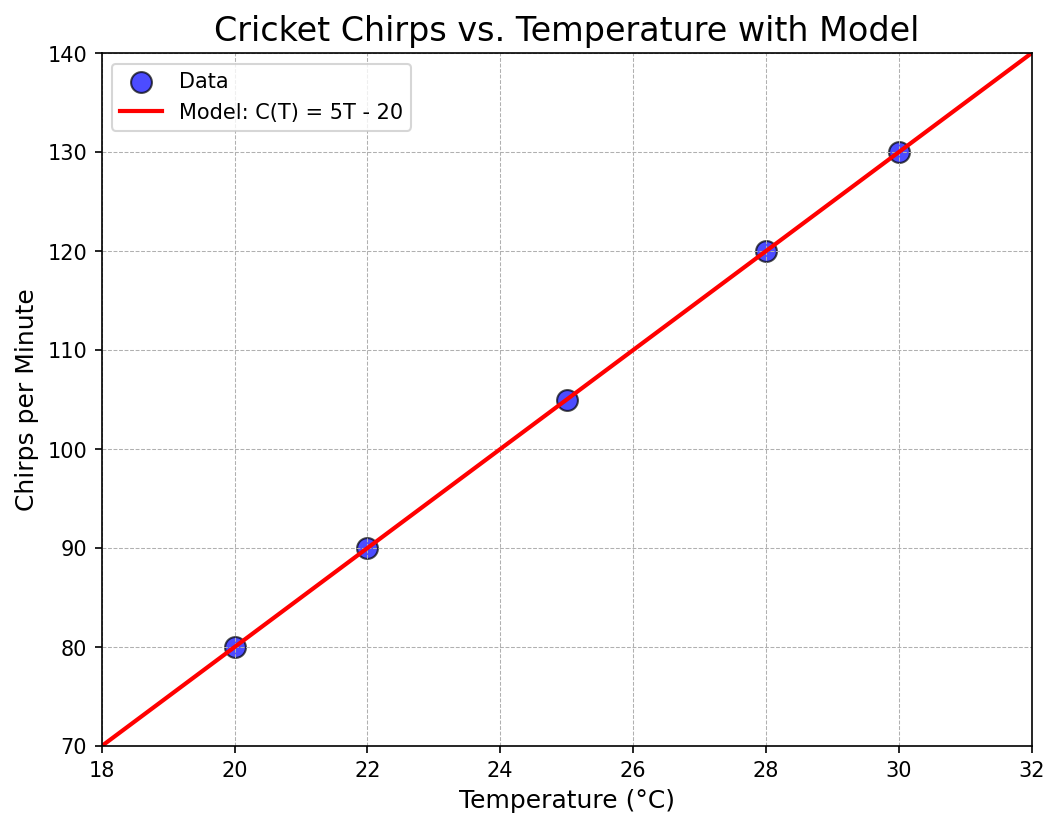

So, our formula is $C(T) = 5T - 20$. Let's plot this line on our graph to see how well it fits the data.

Making a Prediction

Now for the powerful part. We can use our model to make a prediction for a temperature not in our data set, like 26°C.

$$ C(26) = 5(26) - 20 = 130 - 20 = 110 $$

Our model predicts that at 26°C, the crickets will chirp approximately 110 times per minute.

---

The Formal Definition of a Function

This leads us to the formal definition of a function. A linear model is just one specific type of function.

A function $f$ is a rule that assigns to each element $x$ in a set $D$ (the domain) exactly one element, $f(x)$, in a set $E$ (the codomain). The set of all possible values of $f(x)$ as $x$ varies throughout the domain is called the range of the function.

You can think of a function as a machine: it takes an input (an element $x$ from the domain), performs a consistent operation on it, and produces exactly one output, $f(x)$. For example, if we have a function $f(x) = x^2$, an input of $3$ will always produce an output of $9$.

Graphically, we can determine if a curve represents a function using the Vertical Line Test. If any vertical line that you can draw intersects the curve more than once, then the curve is not a function. Notice in the example below that the input $x=2$ is associated with two different outputs, making it a relation but not a function.

---

Families of Functions

In calculus, we'll study many types of functions. Let's briefly review the most common families.

1. Polynomial Functions

A polynomial is a function of the form $P(x) = a_n x^n + a_{n-1} x^{n-1} + \dots + a_1 x + a_0$. The shape of the graph is largely determined by its degree, $n$.

2. Exponential Functions

An exponential function has the form $f(x) = b^x$, where the base $b$ is a positive constant. These model phenomena like population growth and radioactive decay. The special base $e \approx 2.71828$ is the most common in calculus.

If $b > 1$, the function shows growth. If $0 < b < 1$, the function shows decay. A negative exponent, as in $e^{-x} = (1/e)^x$, also indicates decay.

General Properties of Exponents

Property Name	Rule	Description
Product of Powers	$b^x \cdot b^y = b^{x+y}$	When multiplying powers with the same base, add the exponents.
Quotient of Powers	$\frac{b^x}{b^y} = b^{x-y}$	When dividing powers with the same base, subtract the exponents.
Power of a Power	$(b^x)^y = b^{xy}$	When raising a power to another power, multiply the exponents.

3. Trigonometric Functions

Trigonometric functions are essential for describing periodic phenomena. They can be defined in two primary ways: using a right triangle, or using the unit circle.

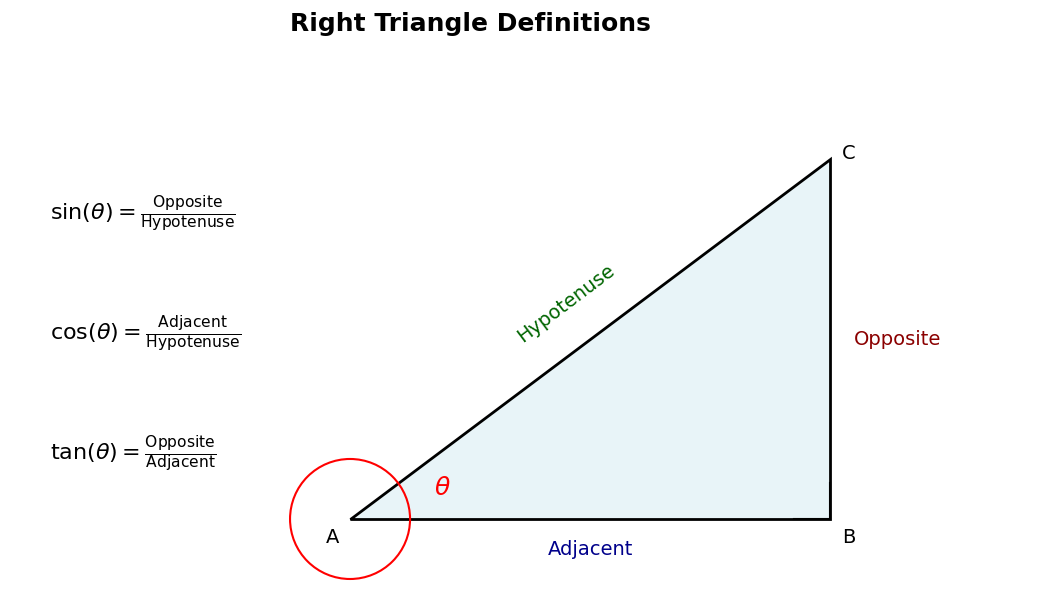

Right Triangle Trigonometry

For an acute angle $\theta$ in a right triangle, we define the trigonometric functions as ratios of the lengths of the sides relative to that angle.

Unit Circle Trigonometry

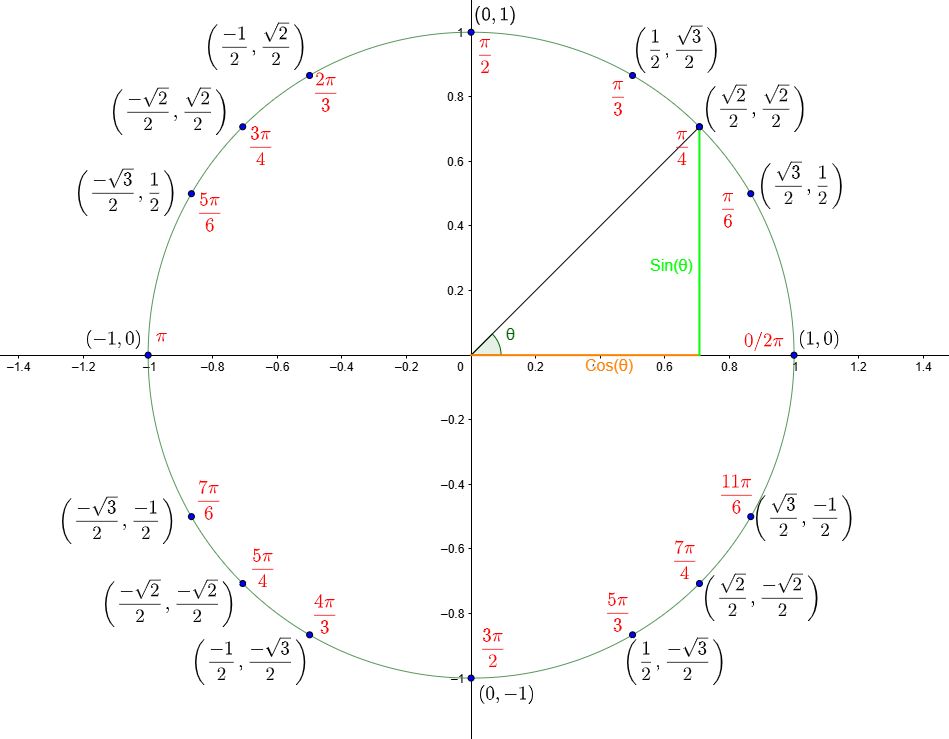

The unit circle provides a more general definition that works for any angle. For an angle $\theta$, the point $(x,y)$ where the angle's terminal side intersects the unit circle gives us $x = \cos(\theta)$ and $y = \sin(\theta)$.

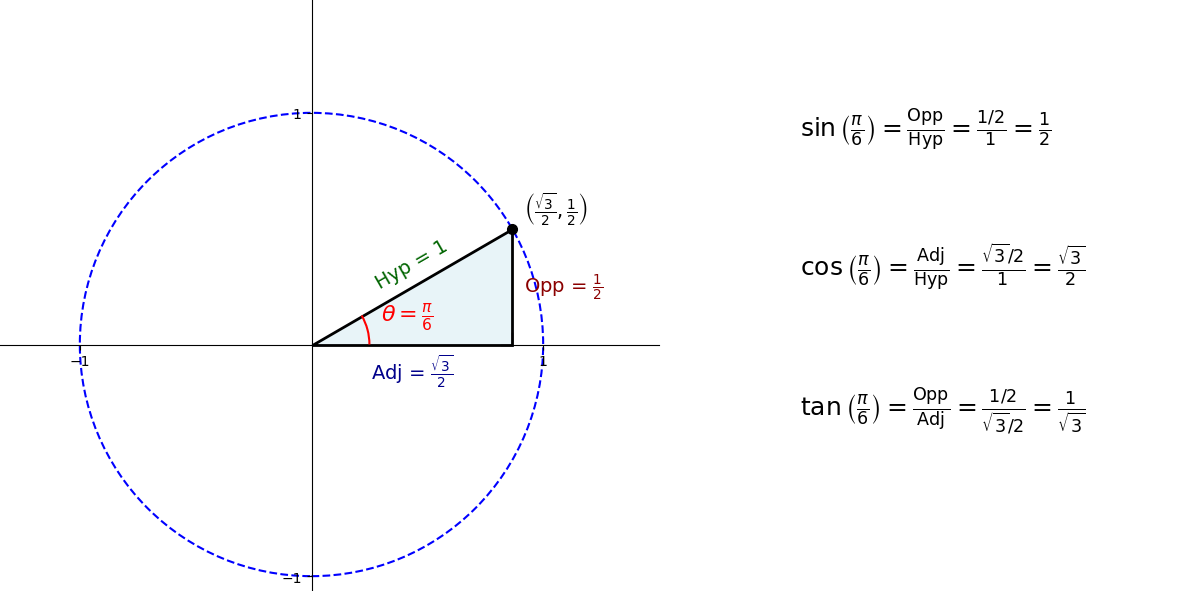

The unit circle is a powerful tool for finding the exact trigonometric values of key angles.

Click here to see the relationship between the unit circle and the graphs of sin, cos, and tan.

Trigonometric Values for Key Angles

$\theta$	$0$	$\pi/6$	$\pi/4$	$\pi/3$	$\pi/2$	$\pi$	$3\pi/2$	$2\pi$
$\sin(\theta)$	$0$	$1/2$	$\sqrt{2}/2$	$\sqrt{3}/2$	$1$	$0$	$-1$	$0$
$\cos(\theta)$	$1$	$\sqrt{3}/2$	$\sqrt{2}/2$	$1/2$	$0$	$-1$	$0$	$1$
$\tan(\theta)$	$0$	$\sqrt{3}/3$	$1$	$\sqrt{3}$	undefined	$0$	undefined	$0$

4. Logarithmic Functions

A logarithmic function answers the question: "what exponent must we raise a base to, in order to get a certain number?" The expression $y = \log_b(x)$ is read as "y is the logarithm to the base b of x".

For example, $\log_2(8) = 3$ because we must raise the base $2$ to the power of $3$ to get $8$. That is, $2^3=8$.

General Properties of Logarithms

Property Name	Rule	Description
Product Rule	$\log_b(xy) = \log_b(x) + \log_b(y)$	The logarithm of a product is the sum of the logarithms.
Quotient Rule	$\log_b\left(\frac{x}{y}\right) = \log_b(x) - \log_b(y)$	The logarithm of a quotient is the difference of the logarithms.
Power Rule	$\log_b(x^n) = n \cdot \log_b(x)$	The logarithm of a power is the exponent times the logarithm of the base.

---

Function Composition and Inverses

Function Composition

Composition is the act of applying one function to the result of another. The composition of $f$ and $g$ is written $(f \circ g)(x)$ and is defined as $f(g(x))$. You work from the inside out.

Inverse Functions

If a function $f$ has an inverse $f^{-1}$, the inverse "undoes" the action of $f$. For this to be possible, the function must be one-to-one, meaning it passes the Horizontal Line Test.

The most important pair of inverse functions for calculus is $f(x) = e^x$ and its inverse $f^{-1}(x) = \ln(x)$. They undo each other:

$$ e^{\ln(x)} = x \quad \text{and} \quad \ln(e^x) = x $$

Graphically, the inverse of a function is its reflection across the line $y=x$.

---

New Functions from Old

A powerful technique in mathematics is to create new functions by applying transformations to existing, simpler "parent" functions. This allows us to understand the behavior of complex functions by seeing them as modifications of functions we already know.

Vertical and Horizontal Shifts

Shifts are transformations that move the entire graph of a function without changing its shape. Let $c$ be a positive constant:

• $y = f(x) + c$: Shifts the graph of $f(x)$ up by $c$ units.
• $y = f(x) - c$: Shifts the graph of $f(x)$ down by $c$ units.
• $y = f(x - c)$: Shifts the graph of $f(x)$ to the right by $c$ units.
• $y = f(x + c)$: Shifts the graph of $f(x)$ to the left by $c$ units.

Example: Completing the Square

Completing the square is an algebraic technique used to rewrite a quadratic function from its standard form, $y = ax^2+bx+c$, into its vertex form, $y = a(x-h)^2+k$. The vertex form is extremely useful because it immediately tells us the horizontal and vertical shifts.

The motivation for the process comes from the structure of a squared binomial: $(x+a)^2 = x^2 + 2ax + a^2$. The key is that the constant term ($a^2$) is the square of half the coefficient of the x-term ($2a$). We exploit this to create a perfect square.

That concludes our pre-calculus review. Understanding these function families and how to manipulate them is critical for your success as we move into the core concepts of calculus, starting with limits in our next lecture.
